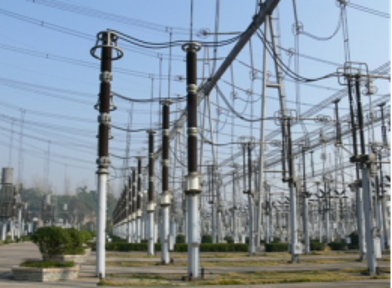

Capacitive & Coupling Capacitor Voltage Transformers:

We provide a full range Capacitive & Coupling Capacitor Voltage Transformers up to 1,100KV:

• Applications up to 1,100KV
• Hight accuracy (0.1) with wide margin
• Optional accuracy adjustment terminal for on-site configuration
• Meets applicable IEC and IEEE/ANSI Metering and protection standards
• High seismic withstand performance
• Extra creepage distance with strong pollution resistant capability
  • Pollution: Level D, Creepage above 44cm/kv
  • Pollution: Level E, Creepage above 55cm/kv
• Not prone to ferro-resonance conditions, improving asset and system reliability
• Partial discharge less than 5pC in condition of 1.2Um
• Non-PCB synthetic PXE oil is used in capacitors and mineral oil is used in electromagnetic units
• Mechanical Strength
  • Tension at connection terminal is larger than 2,000N [3-Dimensional]
• Capacitor Sections bolt together ensuring easier field installation
• Quality assurance in accordance with ISO9001

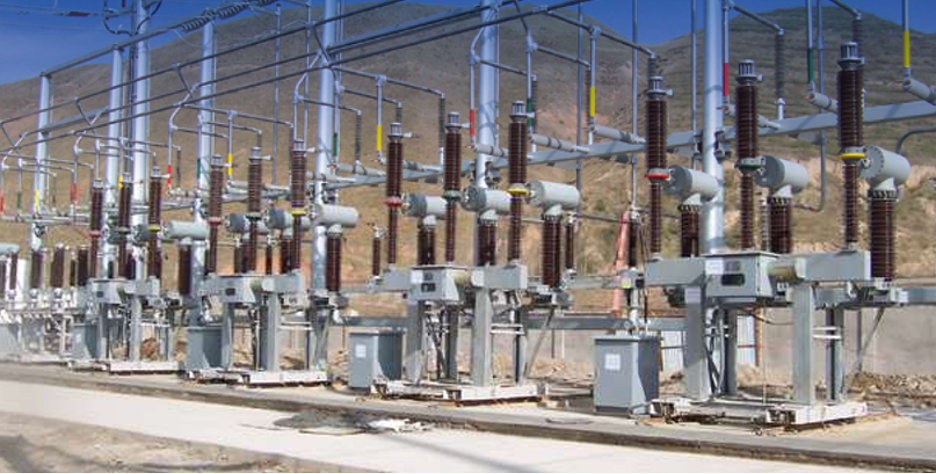

Oil Filled & SF6 Current Transformers:

We provide a full range Oil Filled & SF6 Current Transformers up to 1,100KV:

• Applications up to 1,100KV
• Standard and high accuracy units
• Meets applicable IEC and IEEE/ANSI Metering and protection standards
• Lower partial discharge due to uniform internal electric field distribution
• Lower dielectric loss in long term operation
• Transient protective winding available for high power system and reclosing operation
• High seismic withstand performance
• Standard creepage distance exceeds IEEE and IEC requirements
• Extra creepage units are available upon request
• Oil and SF6 gas insulated designs
• Suitable for low and high temperature applications
• Specialty metering and relaying cores available upon request
• Quality assurance in accordance with ISO9001
